SYSTEM SUPPORT
Custom solutions for steel structure supports and mounts -Solarscapes, shade structures and carportsSYSTEM SUPPORT
Vertical
| Type | A (mm) | B (mm) | Weight(kg) |
|---|---|---|---|
| P-17 | 1,725 | 1,825 | 8.0 |
| P-12 | 1,291 | 1,391 | 6.4 |
| P-08 | 863 | 963 | 4.3 |
| P-04 | 432 | 632 | 2.7 |
| P-02 | 216 | 316 | 1.8 |
Horizontal
| Type | A (mm) | B (mm) | Weight(kg) |
|---|---|---|---|
| H-18 | 1,768 | 1,829 | 4.7 |
| H-15 | 1,463 | 1,524 | 4.1 |
| H-12 | 1,158 | 1,219 | 3.4 |
| H-09 | 853 | 914 | 2.6 |
| H-06 | 549 | 610 | 2.0 |
System Support Components
Truss
| Type | Length (mm) | Width | Weight (Kg) |
|---|---|---|---|
| DT-1524 | 1,524 | 432 | 18 |
U-Head Jockey
| Type | Length (mm) | Weight (Kg) |
|---|---|---|
| UH-600 | 150~450 | 5.0 |
Jack Base
| Type | Length (mm) | Weight (Kg) |
|---|---|---|
| JB-600 | 50~450 | 3.9 |
Yoke
| Type | Dimensions | Weight(Kg) |
|---|---|---|
| 2M | 75×125×3.2T | 17.7 |
| 3M | 75×125×3.2T | 26.5 |

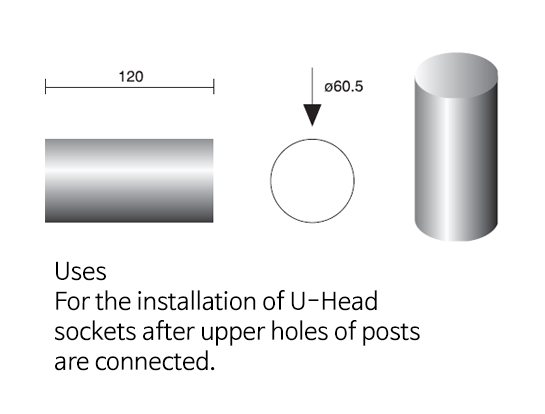

U-Head Socket
| Type | Length (mm) | Weight(Kg) |
|---|---|---|
| 카프링 | 120 | 0.9 |
